Speedometer SP2002

Single bed speedometer SP2002 for passenger cars, vans and light commercial vehicles with a standard track of 2080mm and with 700mm rollers.

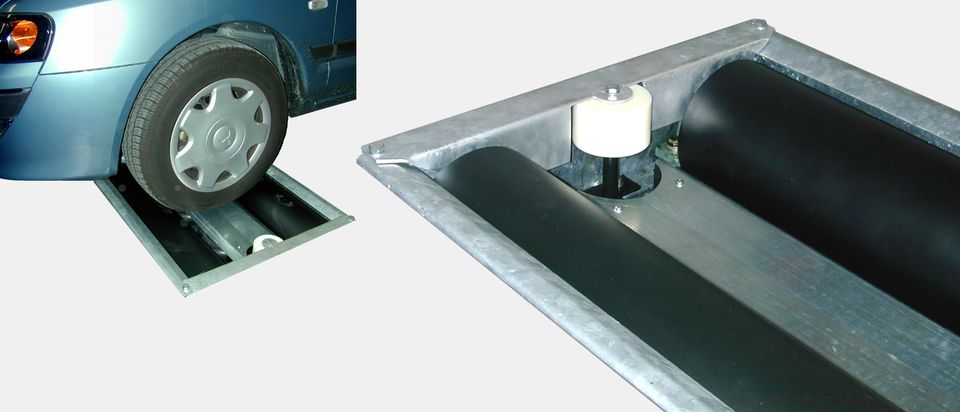

The speedometer is designed to test the accuracy of the speed indicator in the vehicle. The speedometer consists of two pairs of dynamically balanced rollers. The vehicle’s wheels drive these rollers, while an electronic speed sensor measures the vehicle speed, which is continuously displayed on the screen. The speedometer is equipped with a pneumatic lift- and brake system for Easy Exit® out of the rollers. The speedometer has four side protection rollers to prevent rim and tire damage.


Maximum axle load
2000 kg
Measuring range
0-100 km/h
870-2080 mm
Roller dimensions
700 x 190 mm
234 x 66 x 30 cm
Hot dip zinc


  • Free run roller set

Free run roller set
Free run roller set.
