M801 Digital display

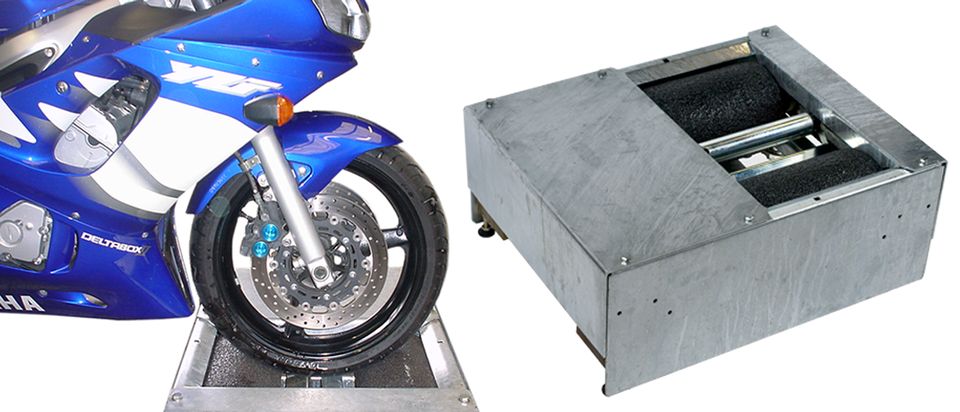

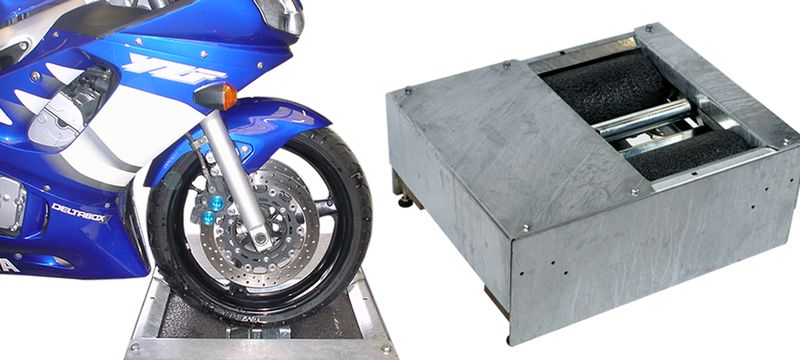

The Altus® M801 is a digital display for roller brake testers for motorcycles up to 3 kN. It is designed for operators who prefer a digital read-out. It analyses the conditions of the brakes of all types of motorcycles, scooters and sidecars.


Available in 1-PHASE and 3-PHASE!


Standard features

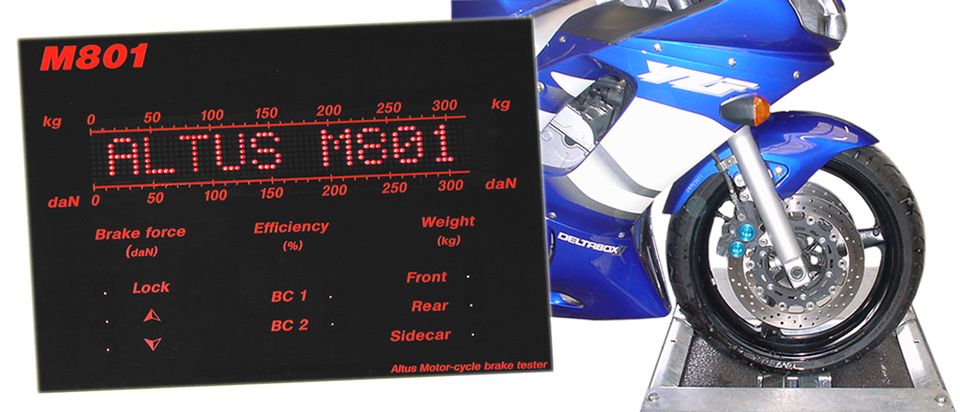

  • Digital LED display for all numerical values for brake force, weight and brake efficiency.
  • Wheel lock indication lamps.
  • Memory for storage of all test results for all wheels.
  • Automatic efficiency calculation for brake control 1 (hand brake) and brake control 2 (foot brake).
  • Bi-directional facility.
  • Easy Exit® drive out of rollers.
  • Infra red remote control hand set for operation of all functions of the brake tester.
  • Standard wall bracket.

Specifications

M801
Dimensions
670 x 500 x 165 mm

Options

  • Pivoting wall bracket
  • Printer
  • Printer drawer
  • Printer wall bracket
  • Pedestal
Brochure downloads
