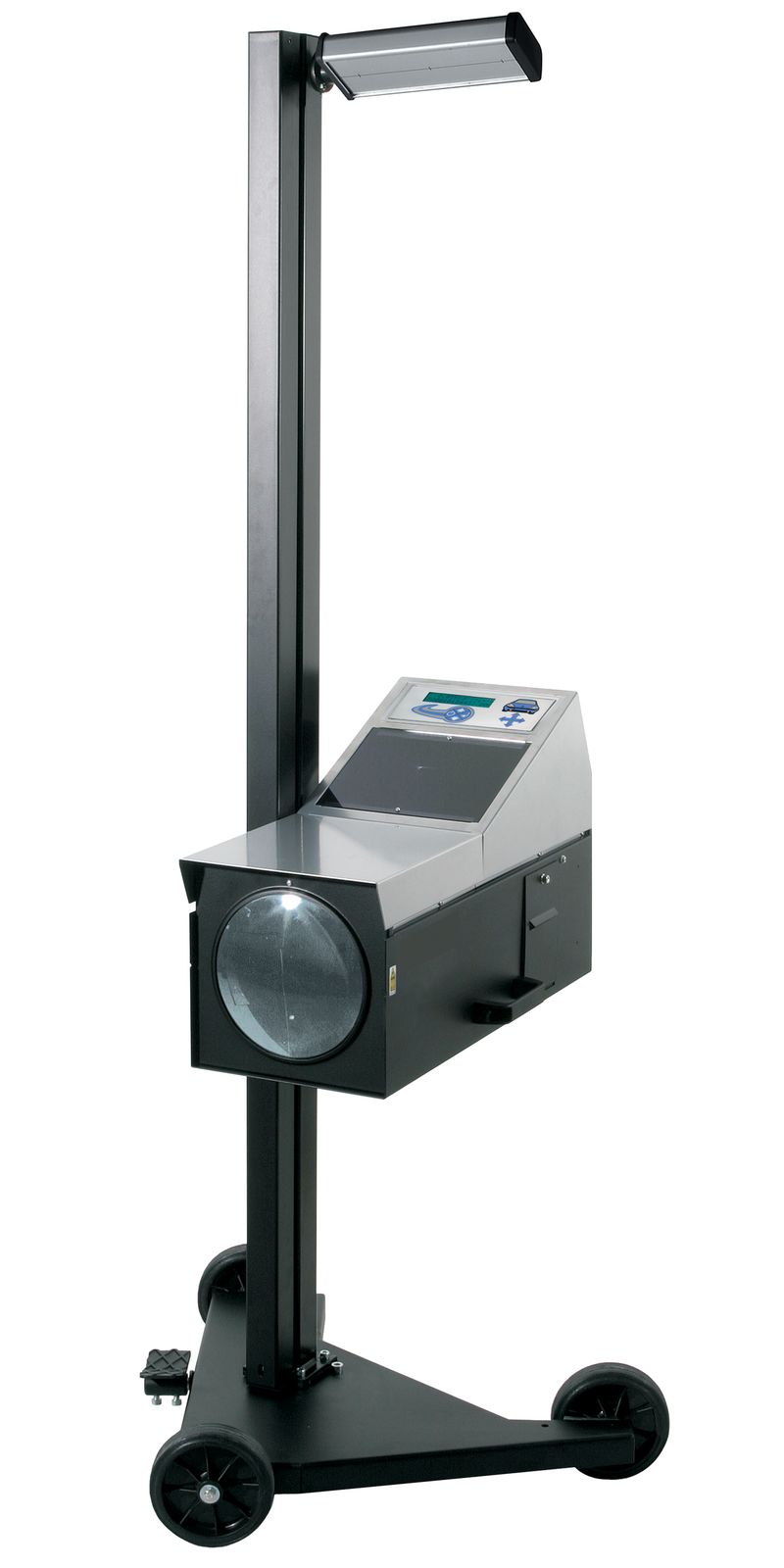

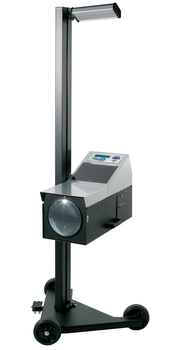

Headlight testers HT3000 / HT3001

The HT3000 and HT3001 are electronic headlight beam testers based on a stable adjustable wheel basis and equipped with digital LCD display and mirror visor. The operator is guided through the test with a few easy steps.

Model HT3000
Enables a inclination check on the headlight position and follows the French testing protocol. It shows how much deviation a headlight has in centimeters based on a distance of 10 meter and presents this in %. 1% means that the headlight inclines with 10 cm over a distance of 10 m.

It can operate as a stand alone unit or can be integrated in the Altus® Atlas test lane software of the 4200L console (passenger cars) or 4202T console (heavy vehicles). Communication between the headlight tester and test lane PC via RS232 cable. Bluetooth is optional.

Model HT3001

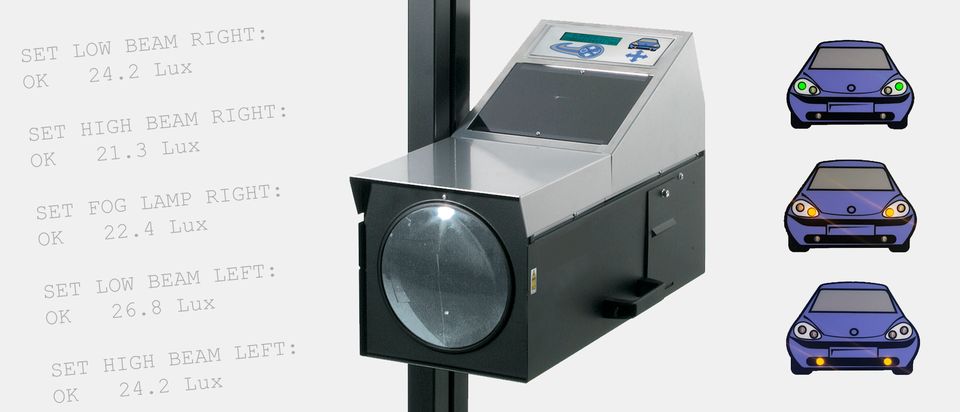

Enables a light intensity check (in Lux, Klx or Kcd) for the high beam, low beam and fog light. Halogen, Xenon and LED headlights can all be tested. It contains an inclination (tilt) adjustment wheel and a built-in printer. It operates as a stand alone unit.

HT3000
Standard
  • Mirror visor.
  • LCD digital display.
  • Control panel.
  • RS232 connection.
  • Vertical sliding system.
  • Turning column.
  • Centimeter scale on column.

Specifications

HT3000 / HT3001
Dimensions
600 x 67 x 174 cm (LxWxH)
Weight
+/- 34 kg

Options

  • Set of rails
  • Laser pointing visor
  • Bluetooth connection to PC
Brochure downloads
Altus HT3001

Impression

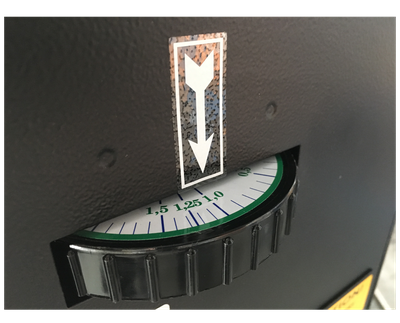

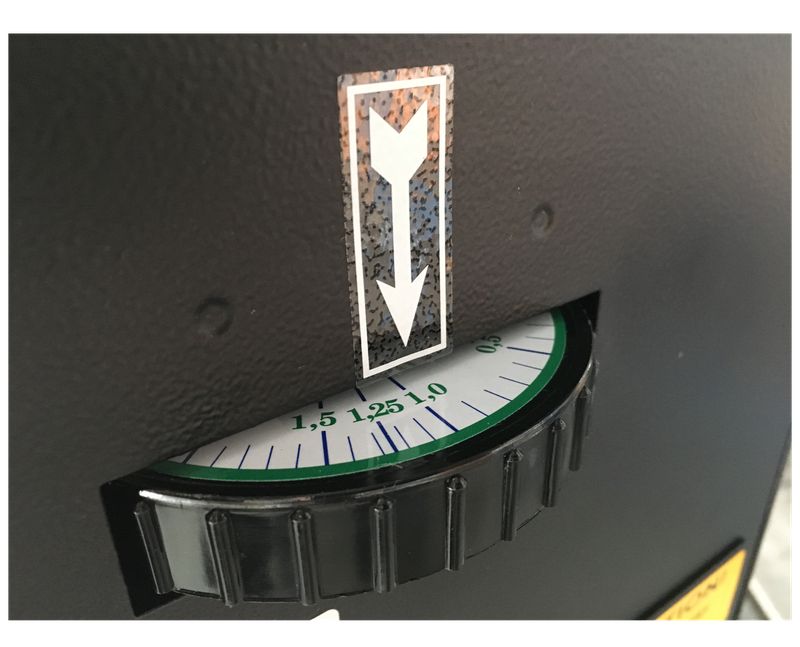

HT3001 wheel  (2100x1700).png
Inclination (tilt) adjustment wheel.

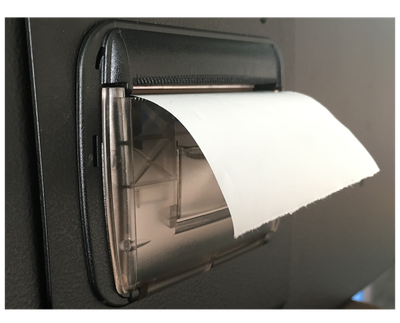

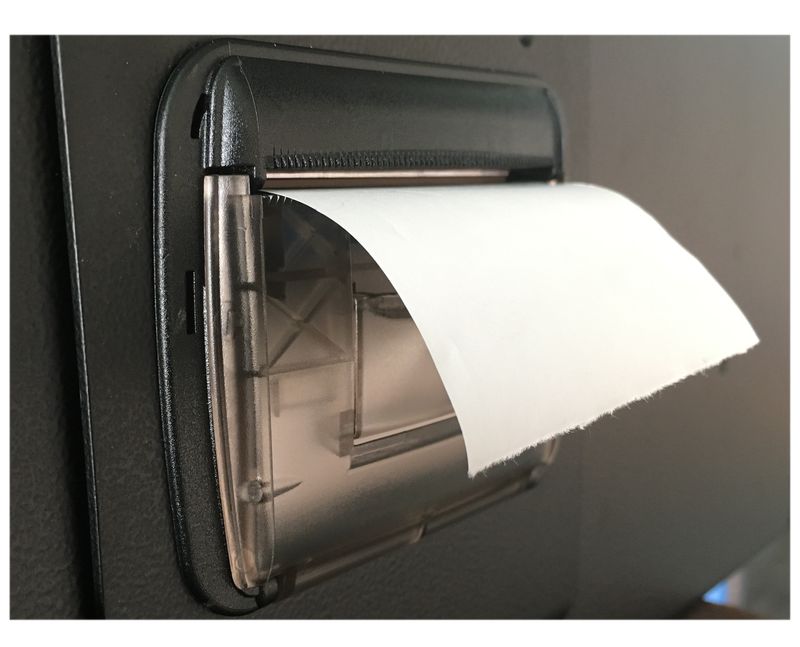

HT3001 print  (2100x1700).png
Built-in printer.

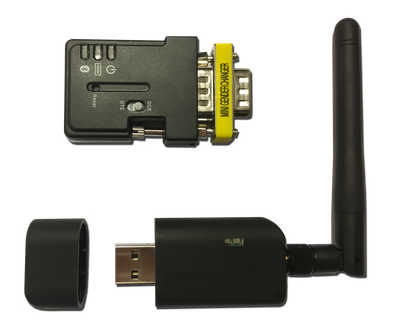

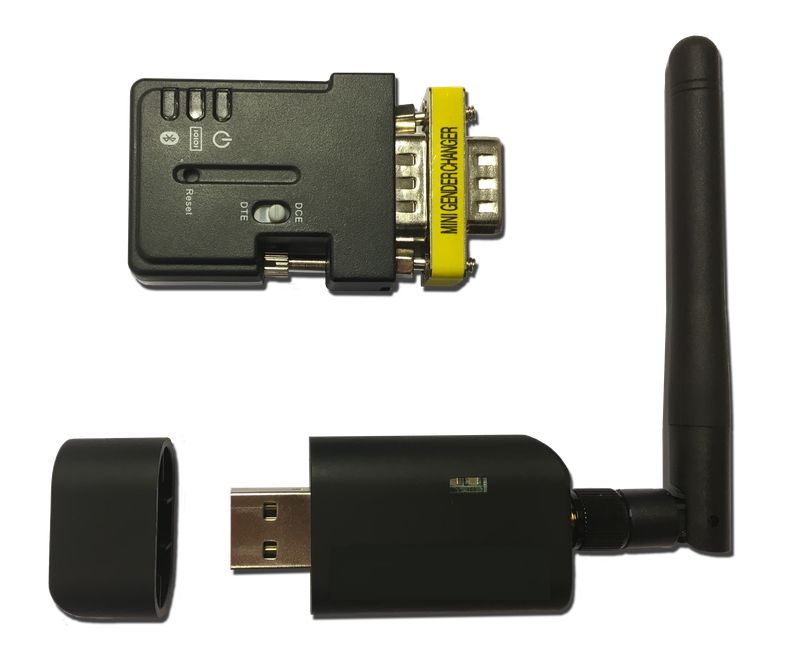

HT3000 Bluetooth  (2100x1700).png
Bluetooth.
