Play detector PD5810-15-20-30 series

Meets the EU Directive 2014/45/EU.

The hydraulic PD5810-15-20-30 play detector series for heavy vehicles is designed to check quickly and efficiently most steering and suspension components.


Quick, Simple & Effective!

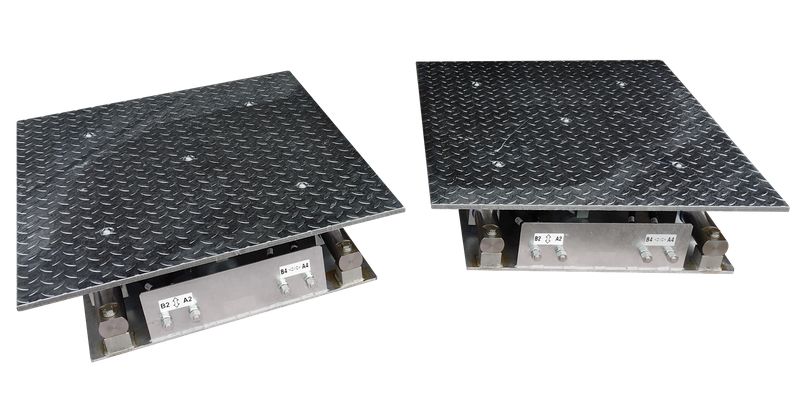

The play detector consists of an hydraulic power unit, a control lamp (cable connected or wireless) and two platforms each with a hot dip zinc chequered plate. One for the left wheel and one for the right wheel.

Each platform is actuated by two hydraulic cylinders. Four models are available: the PD5810 (cable torch), PD5815 (=PD5810 but with wireless RF torch), PD5820 (cable torch) and PD5830 (= PD5820 but with wireless RF torch). The model number determines the possible movements of the platforms as well as the type of control lamp supplied.

Movements PD5810/PD5815
  • Front, rear, left, right, diagonal.
Movements PD5820/PD5830
  • Front, rear, left, right, diagonal.
  • Automatic mode.
  • Anti-fase.
  • Independent left & right platform.

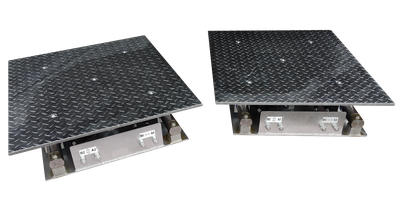

PD57xx set of 2

Specifications

PD5810-15-20-30 series
System
Electro-hydraulic, 2 platforms
Maximum axle load
20000 kg (drive over)
Sliding force/platform
30000 N
Stroke
100 mm
Test speed
70 mm/sec
Operating pressure
180 bar
Motor(s)
1 x 4 kW
Dimensions
Platform: 950 x 800 x 217 mm (LxWxH)
Power supply
3PH 400 V / 50 Hz

Options

  • Floor frame set
  • Hydraulic hose set
  • Modification set 3PH 230V / 50Hz
  • Modification set 3PH 230V / 60Hz
Brochure downloads
Escon PD5810-15-20-30

Impression

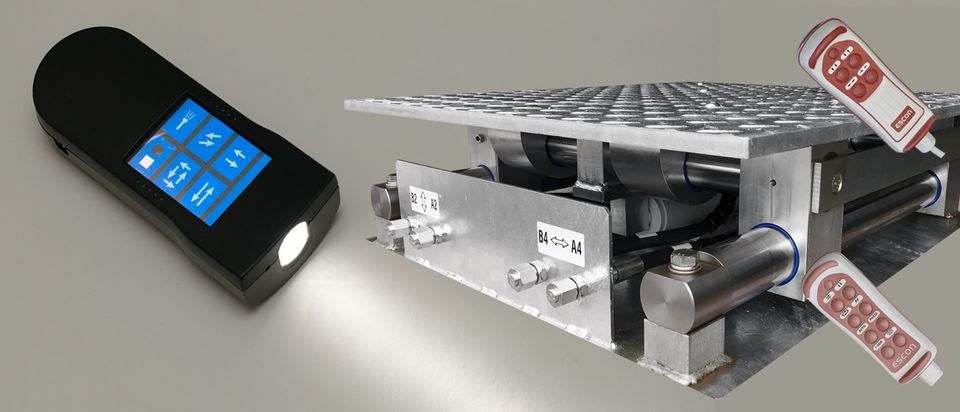

PD2610-2620 control lamp
PD5810 - PD5820 control lamp.
PD-RF torch models -15 and -30
PD5815 - PD5830 RF control lamp.
