Play detector PD3600 series

Meets the EU Directive 2014/45/EU.

The hydraulic PD3600 play detector series (2 platforms) is designed to check quickly and efficiently most steering and suspension components of passenger cars and light trucks.

Quick, Simple & Effective!

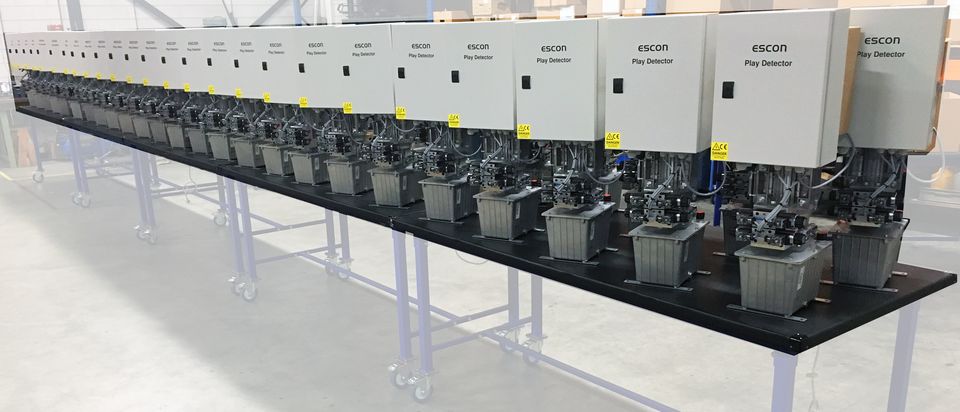

The PD3600 model consists of an hydraulic power unit, a control lamp (cable connected or wireless) and two platforms, one for the left wheel and one for the right wheel. The platform height is only 61 mm.

The surface mount model SM can be mounted on the floor or on a suitable lift with runways, e.g. a 4-post lift.

The flush mount model FM can be installed in the floor on both sides of an inspection pit.

Each platform is actuated by two hydraulic cylinders. Four models are available: the PD3610 (cable torch), PD3615 (=P3610 but with wireless RF torch) PD3620 (cable torch) and PD3630 (= PD3620 but with wireless RF torch). The model number determines the possible movements of the platforms as well as the type of control lamp supplied.

Movements PD3610/PD3615
  • Front, rear, left, right, diagonal.
Movements PD3620/PD3630
  • Front, rear, left, right, diagonal.
  • Automatic mode.
  • Anti-fase.
  • Independent left & right platform.

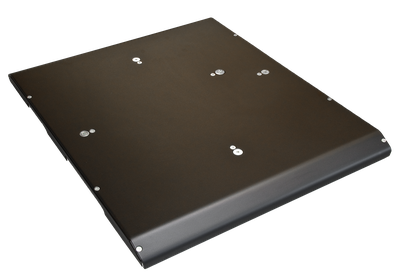

PD3600SM platform

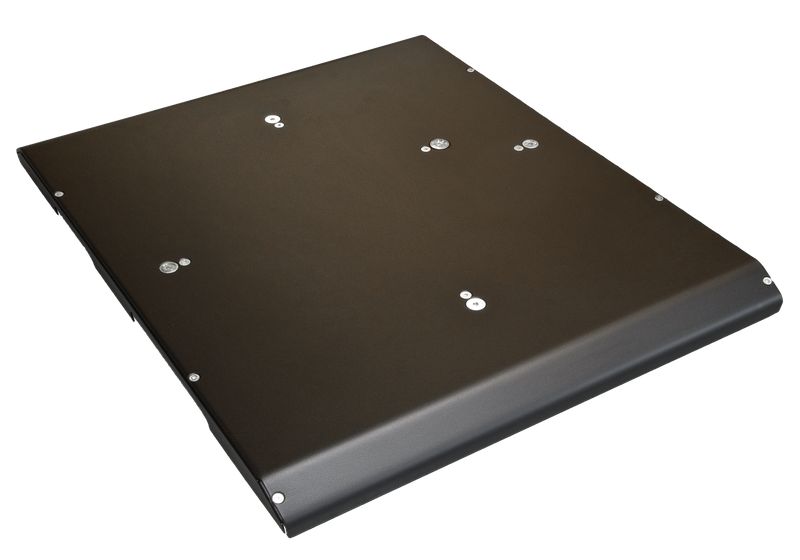

PD36xxSM platform


PD3600 series
Electro-hydraulic, 2 platforms
Maximum axle load
3000 kg
Sliding force/platform
8000 N
96 mm
Test speed
60 mm/sec
Platform SM: 791 x 650 x 61 mm (LxWxH)
Operating pressure
175 bar
1 x 1,5 kW
Power supply
3PH 400 V / 50 Hz


  • Floor frame set

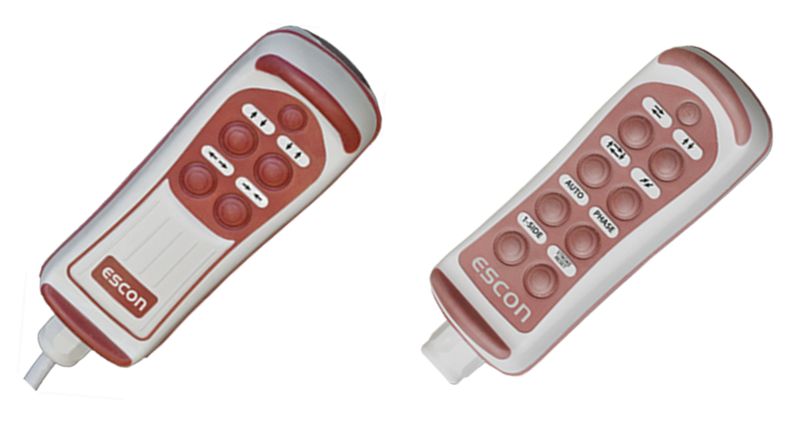

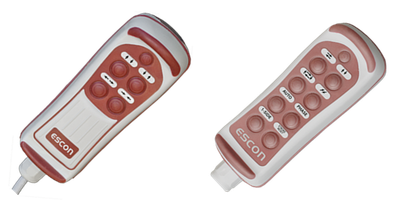

PD2610-2620 control lamp
PD3610 - PD3620 control lamp.

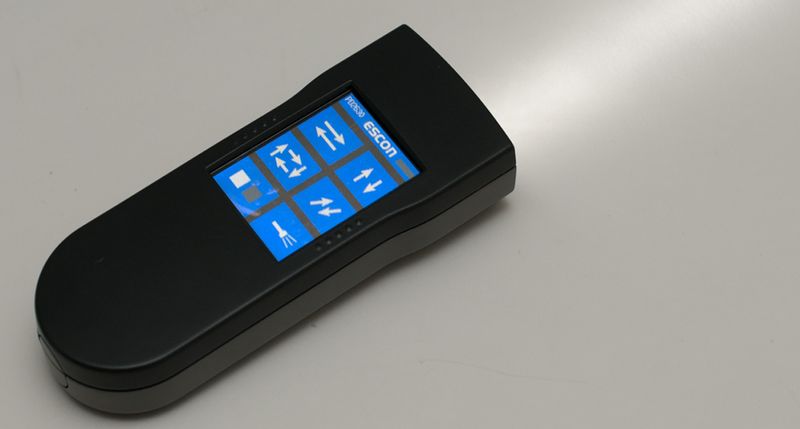

PD-RF torch models -15 and -30
PD3615 - PD3630 RF control lamp.
PD Steering
Check points.
PD Suspension
Check points.
